Basic Info.
Model NO.
QOL4F
Theory
Machine-electric Type
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
RoHS, ISO, CE
Customized
Customized
Standard
ANSI 12.7
Application
Plug in Circuit Breaker
Waterproof Level
NEMA 3r
Protection Level
IP54
Material
0.8-1.5mm Electro-Galvanized Steel Sheet
Rated Voltage
120/240V
Rated Current
100A
Useing Range
Single Phase 3 Wire
Rated Phase
Dpn
Circuit Breaker
4p
Transport Package
Wooden Package
Specification
CE ROHS
Trademark
OEM
Origin
Zhejiang Yueqing
HS Code
9028901100
Production Capacity
100000PCS/ Month
Product Description

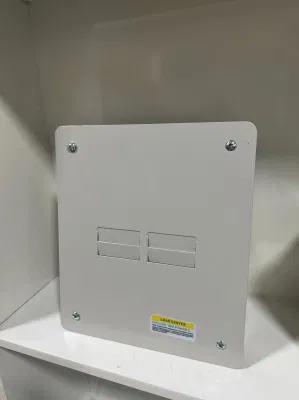

China Centro de Carga Square D equivalent QOL-4F Copper connect jaws Load Center
Application:
QOL series Load Centers have been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises for indoor applications.
Features:
♦ Made out of high quality steel sheet of up to 0.6-1.2mm thickness.
♦ Matt-finish polyester powder coated paint.
♦ Knockouts provided on all sides of the enclosures.
♦ Accept Square D type plug in circuit breakers.
♦ Suitable for AC 60Hz, rated voltage up to 240V, rated current 100A-125A.
♦ Wider enclosure offers ease or wiring and move heat dissipation.
♦ Flush and Surface mounted designs.
♦ Knockouts for cable entry are provided on top, bottom of the enclosure.
Application:
QOL series Load Centers have been designed for safe, reliable distribution and control of electrical power as service entrance equipment in residential, commercial and light industrial premises for indoor applications.
Features:
♦ Made out of high quality steel sheet of up to 0.6-1.2mm thickness.
♦ Matt-finish polyester powder coated paint.
♦ Knockouts provided on all sides of the enclosures.
♦ Accept Square D type plug in circuit breakers.
♦ Suitable for AC 60Hz, rated voltage up to 240V, rated current 100A-125A.
♦ Wider enclosure offers ease or wiring and move heat dissipation.
♦ Flush and Surface mounted designs.
♦ Knockouts for cable entry are provided on top, bottom of the enclosure.
Part Number | Type | Spaces | Rated Current | Voltage |
QOL-1F | Flush | 1 | 100A | 120/240V (1Phase) |
QOL-2F | Flush | 2 | 100A | 120/240V (1Phase) |
QOL-2FNT | Flush | 2 | 100A | 120/240V (1Phase) |
QOL-4F | Flush | 4 | 100A | 120/240V (1Phase) |
QOL-6F | Flush | 6 | 125A | 120/240V (1Phase) |
QOL-8F | Flush | 8 | 125A | 120/240V (1Phase) |
QOL-12F | Flush | 12 | 125A | 120/240V (1Phase) |
QOL-16F | Flush | 16 | 125A | 120/240V (1Phase) |
QOL-20F | Flush | 20 | 125A | 120/240V (1Phase) |
QOL-1S | Surface | 1 | 100A | 120/240V (1Phase) |
QOL-2S | Surface | 2 | 100A | 120/240V (1Phase) |
QOL-2SNT | Surface | 2 | 100A | 120/240V (1Phase) |
QOL-4S | Surface | 4 | 100A | 120/240V (1Phase) |
QOL-6S | Surface | 6 | 125A | 120/240V (1Phase) |
QOL-8S | Surface | 8 | 125A | 120/240V (1Phase) |
QOL-12S | Surface | 12 | 125A | 120/240V (1Phase) |
QOL-16S | Surface | 16 | 125A | 120/240V (1Phase) |
QOL-20S | Surface | 20 | 125A | 120/240V (1Phase) |
