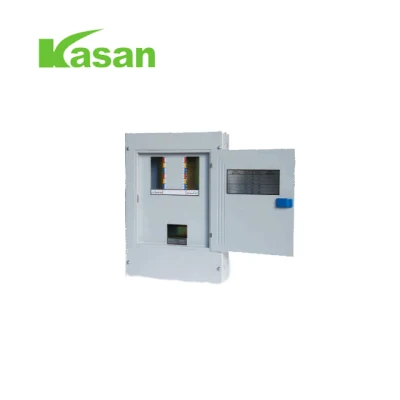

Three Phase Electrical Distribution Board

Get reliable Three Phase Electrical Distribution Board from our factory. High-quality and efficient products for all your electrical distribution needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
HIML
Application Range
High-rise Buildings
Shell Material
Stainless Steel
Shell Protection Grade
IP56
Incoming
MCB, ELCB, Isolator
Color Code
Ral7032 Ral7035
Transport Package
Export Standard Carton
Specification
CE
Trademark
ORIGINAL, AOLKW, KASAN
Origin
Zhejiang, China (Mainland)
Production Capacity
5, 000, 000 Pieces/Week

Product Description

waterproof distribution box,Outdoor waterproof distribution box,wall mounted galvanised distribution box,IP66 waterproof metal distribution box,power distribution box,Electrical enclosure distribution box,Power distribution box,Waterproof metal enclosure distribution box,Waterproof Electrical Enclosure Distribution Box,Industrial steel distribution box



steel distribution box / tableros electricos/ tablero eléctricos specifications:

1   Body and door manufactured in 1.2/1.5mm sheet steel

2   Mounting plate with folded edge in 2.0mmsheet steel



Surface finish:

 Enclosure and door:Dipcoat-primed,powder-coated in textured Ral7032 or Ral7035 outside

 Door opening  Reversible 120 °



Protection:

 Protection degree:IP66

Impact resistaance:IK10



Supply includes:

Body, door, galvanized mounting plate or orange mounting plate; Metal lock or plastic lock, key, screw, sealing gasket, gland plate.


Our Advantages:

1. 20 year's OEM & ODM experience

 2. Spain Design

 3. the color can remain for over 5 years

 4. professional team



Dimensions(mm):

Reference Height Width Depth Thickness(mm)


mm  Door Body MP
BJS1-2020/150 200 200 150 1.2 1.2 2.0
BJS1-3025/150 300 250 150
BJS1-3025/200 300 250 200
BJS1-33/150 300 300 150
BJS1-33/200 300 300 200
BJS1-34/200 300 400 200
BJS1-43/150 400 300 150
BJS1-43/200 400 300 200
BJS1-44/200 400 400 200
BJS1-46/250 400 600 250
BJS1-46/300 400 600 300
BJS1-54/150 500 400 150
BJS1-54/200 500 400 200
BJS1-54/250 500 400 250
BJS1-55/250 500 500 250
BJS1-64/150 600 400 150
BJS1-64/200 600 400 200
BJS1-64/250 600 400 250
BJS1-65/150 600 500 150
BJS1-65/200 600 500 200
BJS1-65/250 600 500 250
BJS1-66/250 600 600 250
BJS1-66/300 600 600 300
BJS1-68/300 600 800 300
BJS1-75/200 700 500 200 1.5 1.2 2.0
BJS1-75/250 700 500 250
BJS1-86/200 800 600 200
BJS1-86/250 800 600 250
BJS1-86/300 800 600 300
BJS1-86/400 800 600 400
BJS1-88/200 800 800 200
BJS1-88/300 800 800 300
BJS1-810/300 800 1000 300
BJS1-106/250 1000 600 250 1.5 1.5 2.0
BJS1-106/300 1000 600 300
BJS1-108/250 1000 800 250
BJS1-108/300 1000 800 300
BJS1-108/400 1000 800 400
BJS1-1010/300 1000 1000 300
BJS1-1012/300 1000 1200 300
BJS1-128/300 1200 800 300
BJS1-128/400 1200 800 400
BJS1-1210/300 1200 1000 300

Three Phase Electrical Distribution BoardThree Phase Electrical Distribution BoardThree Phase Electrical Distribution BoardThree Phase Electrical Distribution Board
